The Main Function

The Tuber Machine only produce tubes, if need to produce valve bags, then Bottomer Machine is needed. The tubes are reworked by opening the bottom on each end, folding, gluing, compacting and finally form a complete valve bag on the Bottomer Machine. It is an indispensable device for the production of valve bags. HD 8916 is Ahd mainly used to produce cement bags and mortar bags.



Remarks:

After many years of actual production, testing and continuous innovation and technology upgrades of the top technical teams in China this field, the equipment is improving every day and has many patented technologies.



Operating Conditions:

Working time: 22 hours / day

Design working environment temperature: 0 ~ 40 °C

Design working environment humidity: up to 95%

Working voltage: 380±10V 50Hz

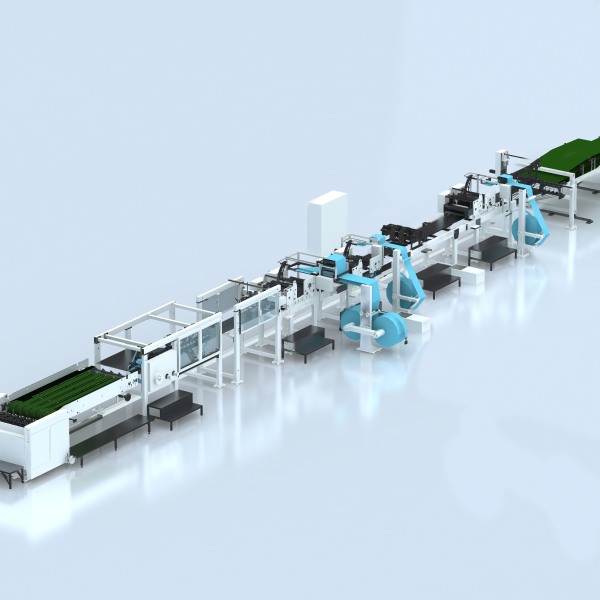

Bottomer Machine HD 8916

The Technical Parameters:

Bag length: 370 ~ 770 mm

Bag width: 350 ~ 550 mm

Bottom width: 90 ~ 120 mm

Bag center distance: 280 ~ 650 mm

Flake valve length: 120 ~ 250 mm

Conventional production speed: 100 / min

Equipment size (minimum configuration) : 24.3 x 4.3 x 2.1 m

Equipment weight (minimum configuration) : 20 tons

Total motor power (minimum configuration) : 33KW;



Configuration

HDA001 Feeding mechanism : 1 set.

Equipped with rotary roller feeding system. The small rollers rotate around the big roller, at the same time, feeding to the self-rotating adsorption, 8 rolls of paper can be loaded on one roll of the big roller.



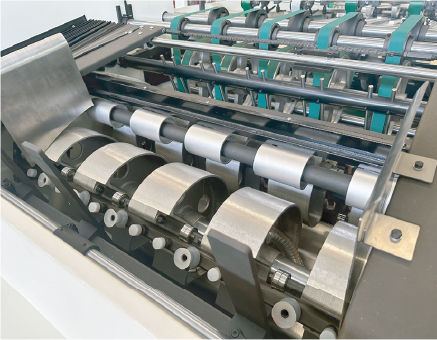

HDB001 Sorting out and perforation mechanism : 1 set

A. To ensure accurate positioning of the conveyor, equipped with 3 sets of timing belts with baffles and conveyor belts, Automatic positioning when has speed differences.

B. Equipped with 45 ° angular pressure oblique device, this device comes with a differential mechanism, can adjust the embossing position without stop the machine;

C. Equipped the center distance indentation device;

D. Equipped with longitudinal cutting device to the bottom of the flat cutting bag.



HDC003 Opening & horn flattening mechanism : 1 set:

A. Equipped with a opening device with a linear slide base, can also be flexibly adjusted to get the right position by turning the handwheel.

B. Equipped with horn opening device with the waiting function. Turn the two handwheels separately can control the position and waiting time of the horn open system;





HDD002 Transitional mechanism : 1 set.

Equipped with four sets of detection electric eyes to check whether the bottom of the paper bag is normally opened.



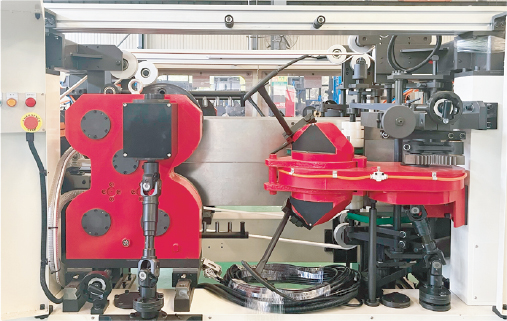

HDE002 Flake valve mechanism : 1 set.

A. Equipped with the whole unit differential adjustment device, can adjust the paper sticking position without stopping the machine.

B. can be attached to the internal valve port or external valve port

C. can be attached to the paper plus film misalignment valve port



HDE007 Bottom-closing & gluing mechanism: 1 set.

A. Equipped with the indentation device of bottom width marking ;

B. Equipped with the glue differential device to adjust the glue position without stopping the machine.





HDF003 Bag forming mechanism: 1 set:

Equipped with Adjustable forming device, flexible adjustment of paper bag width, no need to replace core plate



HDG005 Bottom revising mechanism: 1 set.

Equipped with two modes of Bottom revising device,the bottom of the bag can be turned up or down



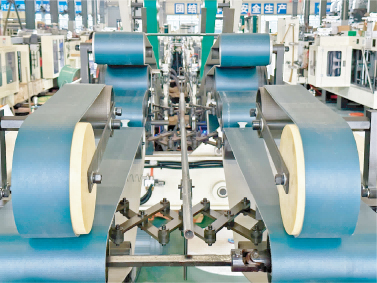

HDH001 Compaction and counting mechanism: 1 set.

Equipped with precise counting device, paper bag stacking and separating device



HDJ001 Outputting mechanism : 1 set

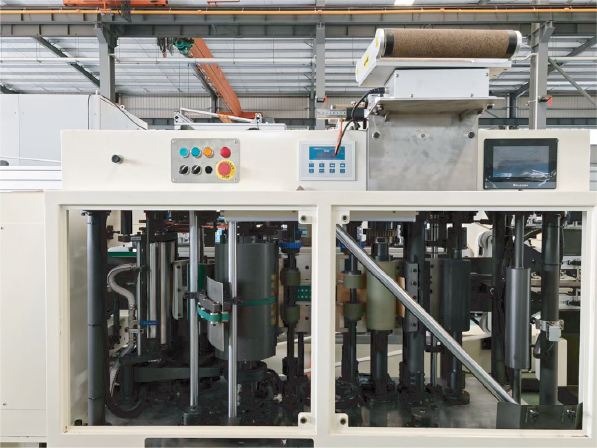

Electronic control system: 1 set:

A. Touch operation screen - Kunlun

B. Control PLC - Siemens

C. Frequency converter - Delta

D. The main electric cabinet

Vacuum pump: 1 set





Option 1: External Reinforcement Mechanism HDE010

Application: Paste a layer of paper on the outside of the bottom (both ends) of the valve, which increases the bonding area of the glue between the layers of paper, so it strengthens the bottom structure, making it stronger and better quality. At the same time, the external reinforcement is generally printed, so that tttthe entire bag looks even more beautiful.

Remark: The external reinforcement mechanism is integrated with the bottom machine. There are two sets (one set on each side), which is the option for the Bottomer Machine. After the equipment is installed and commissioned in the customer's factory and started to operate, if you want to add an external reinforcement mechanism, it will change the structure of the production line. And the added cost and difficulty are very large. It is not recommended to add it later. Customers are suggested to determine whether to purchase an external reinforcement mechanism base on thinking of whether need it in the coming future, and make the decision before purchase the Bottomer Machine.

Technical Parameters :

1 ) External reinforcement length: 260~380mm ;

2 ) Increase the length of the Bottomer Machine: 1.58 meters ;

3 ) Increase the total power of the Bottomer Machine: 4KW;

4 ) Increase the weight: 4 tons;



Option 2: External Reinforcement Two-color Printing Machine HDK001

Application: Equipped with the external reinforcement two-color printing machines on the bottom machine, mainly for printing on the external reinforcing paper, to make the paper bag more beautiful They are usually in pairs, one on each side.



Note: If you use an off-line (outside the production line) printing machine, you may need not these two-color printing machines. The external reinforcement paper can be printed on the off-line printing machine and then cut on the slitter and then put directly on the Bottomer Machine. Only when using an online printing machine (barrel machine) for printing, but also for external reinforcement with printing, it is necessary to purchase the external reinforcement two-color printing machines. Customers can purchase two-color presses according to their actual needs. Because the two-color printing press also needs to be printed synchronously with our Bottomer Machine, it is not recommended for customers to purchase from other supplier, so as to avoid not matching between the printing machine and Bottomer Machine, resulting in unnecessary waste.



Option 3: Internal Reinforcement Mechanism HDE005

Application: Paste a layer of paper inside the bottom (both ends) of the valve bags, which increases the bonding area of the glue between the layers of the paper, so it strengthens the bottom structure, making it stronger and firmer. More important, it can prevent powder leakage and better quality.



Remarks:

1. The internal reinforcement mechanism is integrated with the Bottomer Machine, and a set of two units (one unit on the left and the other on the right) , it is the option for the Bottomer Machine. After the equipment is installed and commissioned in the customer's factory and started to operate, if you want to add an internal reinforcement mechanism, it will change the structure of the whole production line. And the added cost and difficulty are very large. It is not recommended to add it later. Customers are suggested to determine whether to purchase an internal reinforcement mechanism base on thinking of whether need it in the coming future, and make the decision before purchase the Bottomer Machine.

2. After select internal reinforcement, it is necessary to select external reinforcement as well. But it is not has to select internal reinforcement when select external reinforcement.



Technical Parameters :

1 ) Internal reinforcement length: 260~380mm ;

2 ) Increase the length of the Bottomer Machine: 1.58 meters;

3 ) Increase the weight of the Bottomer Machine: 8 tons;

4 ) Increase the power of the Bottomer Machine: 0.5KW



Option 4: Big S

Application: Adding the Big S to the outputting unit of the Bottomer Machine, to increase the distance of going to the bag during the output process, and at the same time, press hard on the bag, so that the bag produced is flatter and the adhesion is stronger. The overall quality of the bag is better.



Remarks :

1. The color and the Bottomer Machine are the same;

2. The speed is synchronized with the Bottomer Machine;

3. Increase the length of the Bottomer Machine: 4 meters (the large S itself is 12 meters long, and the corresponding unit length on the original Bottomer Machine is 8 meters)

4. Weight: 9 tons

Where to Buy Bottomer Machine?

If you are looking for a reliable bottomer machine, you can contact Tecon. Tecon is a professional cement bag manufacturer in China, offering a wide range of cement bag making machines. Tecon's valve bag making machine has received national recognition. Winning the national new product award in 1996 and the China packaging technology prize in 2000 underlines the quality and innovation of their products.
Tecon ensure the machine quality. Tecon emphasizes quality throughout its operations. The development of an automatic Bottomer Machine and the elimination of stitching in favor of bottom-pasting bags highlight their dedication to producing high-quality packaging solutions.
